Exterior Metal Panels:

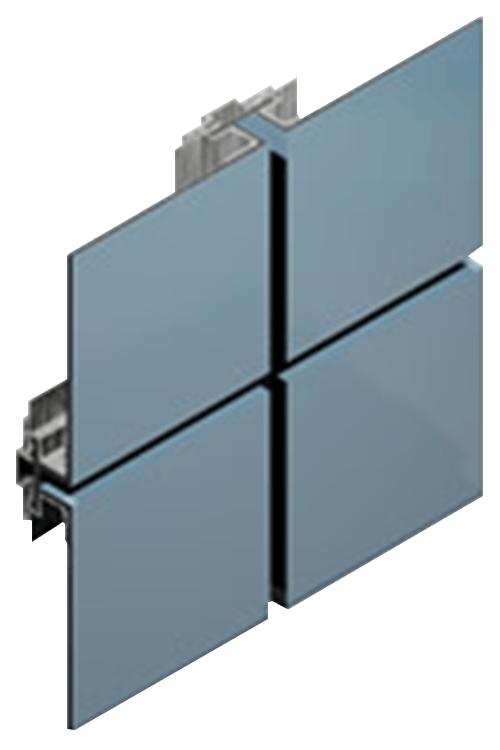

FABLOGIC D-500

This lightweight, low-maintenance rainscreen panel system uses rainscreen technology and can be fabricated in complex shapes and curves. Our composite panel joint filler offers versatility with optional joint sizes and accent colors.

Utilizes full-length interconnecting perimeter extrusions that reinforce the panel flanges and provide self-alignment of panels

Rainscreen principle, high-tech appearance

Recessed composite panel joint filler

Optional joint sizes and accent colors

High-performance system with guttering extrusions

Comprised of 4- or 6-mm composite panel

Lightweight construction

Complex and curved shapes

Can be applied over a variety of substrates

FR core material available to meet NFPA 285 multi-story fire testing per IBC 2009

Lengths up to 21’

Widths up to 5’

Low maintenance

Solid plate skins are available as an alternative option to composite

D-500 Properties

Joint Size: ½” wide (13 mm) Recessed 1”

Joint Material: Extruded Aluminum Vision Strips

Wall Design: Rain Screen, Pressure-Equalized

Testing: AAMA 508-07: Voluntary Test Method and Specification for Pressure Equalized Rain Screen Wall Cladding Systems and AAMA 501.01-05: Standard Test Method for Water Penetration of Windows, Curtain Walls, and Doors Using Dynamic Pressure. View Report.

ASTM 283-04: Standard Test Method for Determining the Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors Under Specified Pressure Differences Across the Specimen, ASTM E1233-00: Standard Test Method for Structural Performance of Exterior Windows, Curtain Walls, and Doors by Cyclic Static Air Pressure Differential, and ASTM E331-00: Standard Test Method for Water Penetration of Exterior Windows, Curtain Walls, and Doors by Uniform Static Air Pressure Difference. View Report.

Request more information or contact us to learn more about BAMCO
and our exterior wall panel products.
Download the D-500 Product Specifications / Details
